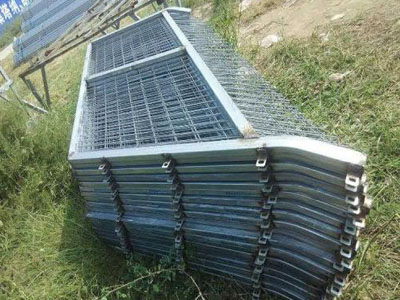

Angle steel fence is a fence product used for isolation and protection facilities on both sides of the railway.

Reference specifications:

* Appearance size is 1750×2750mm

* The frame is made of 40×25×3.0mm angle steel

* The mesh is welded by steel wire with a diameter of 4.0mm or 3.5mm

* Mesh hole 75×150 or 50×100mm

* Connectors are made of 40×55×8.0mm iron plate

* Anti-corrosion plastic dipping should be performed after galvanizing

Precautions:

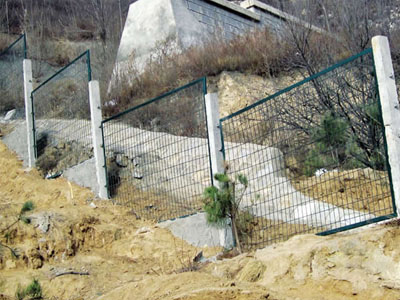

When the angle steel fence is set up in an area with undulating terrain, the ground can be repaired into a certain longitudinal slope, and the metal mesh can be made into a parallelogram with a certain angle and set along the slope. The column speed and the position of the connector can also be adjusted to make the isolation fence into a stepped shape
