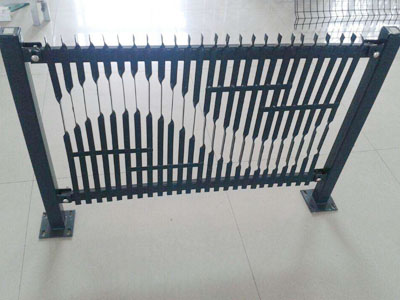

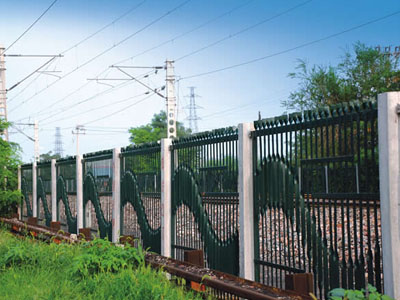

Flat iron fence is a kind of railway isolation fence, which is used as isolation and protection facilities on both sides of the railway. It is a fence net product that plays the role of isolation and protection. It is currently widely used in highways, railways, and landfill test sites. This type of product is durable, beautiful, has a wide field of vision, and has excellent isolation performance.
Reference specifications:

* Appearance size: 1960×2790mm

* Frame: Square tube 60×40×2.5mm, left and right square tube 40×40×2.5mm, 40×3 flat steel welded in the middle, four reinforcing ribs are 40×4 flat steel, lengths of 1000 and 1200mm respectively

* Plastic dipping (green) on the surface of the mesh, thickness 0.8-1.2mm required, uniform coating, consistent color, smooth surface, no sag, drip, powder bubble, cracking and other defects

* Upper welding point, two points on the left and right, one point at the back, welding length 10-15mm; lower welding point, two points on the left and right, one point in the middle, welding length 10-15mm

* Full welding between reinforcing ribs and square tubes, the welding requirements are firm

* Remove welding slag after welding, the weld should be smooth

* The warpage of the mesh after welding is not more than 8mm
